Taylor-Dunn Personnel Carriers

Whether you need to move a single individual or an eight-person team, Taylor-Dunn personnel carriers are a reliable and cost-effective transportation solution.

Personnel Carriers

Taylor-Dunn's lineup of personnel carriers are designed for moving groups up to eight people.

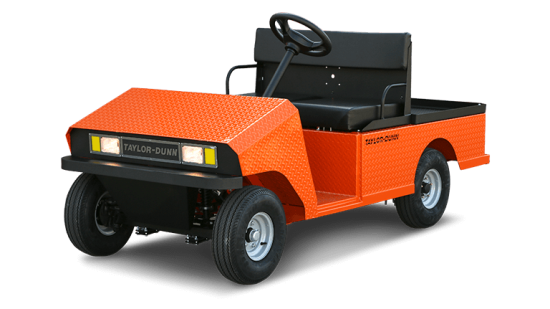

R-380

R-380

The R-380 is a versatile solution that can be used as either a personnel or burden carrier during daily operations.

  • 36 or 48 volt electric
  • Speed up to 15 mph
  • Range up to 35 miles
  • Load capacity of 1,150 pounds
  • Tow capacity of 5,000 pounds
  • Two person capacity

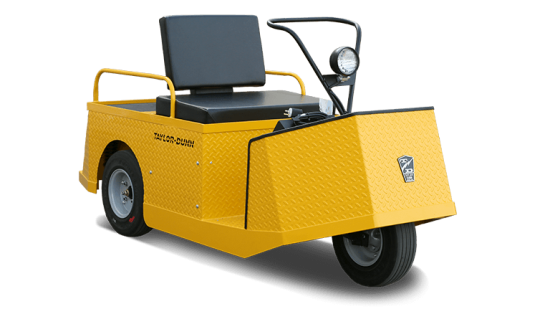

SS-536

SS-536

​The SS-536 is the perfect vehicle solution for transporting executive, security, maintenance and other personnel.

  • 24 volt electric
  • Speed up to 9 mph
  • Range up to 20 miles
  • Load capacity of 600 pounds
  • Tow capacity of 2,000 pounds
  • Two person capacity

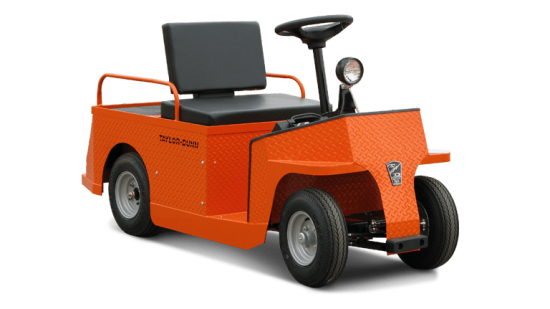

SS-546

SS-546

​The versatile design of the SS-546 can easily transform into a two person vehicle by simply flipping down the backrest.

  • 24 volt electric
  • Speed up to 9 mph
  • Range up to 20 miles
  • Load capacity of 600 pounds
  • Tow capacity of 2,000 pounds
  • Two person capacity

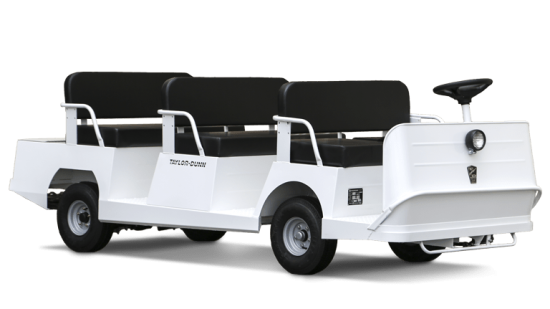

BT-280

BT-280

The BT-280 has a seating capacity of up to 6 people, and is designed to tow personnel trailers to transport additional people.

  • 36 or 48 volt electric
  • Speed up to 11 mph
  • Range up to 24 miles
  • Load capacity of 3,000 pounds
  • Tow capacity of 12,500 pounds
  • 6 person capacity

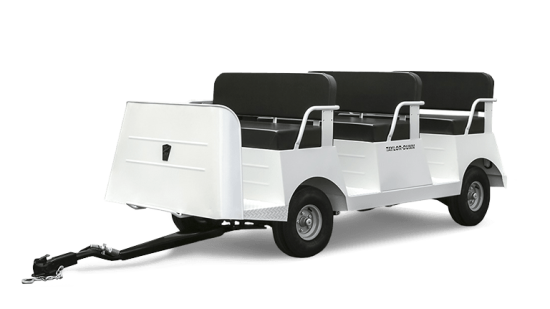

T-941

T-941

Taylor-Dunn’s T-941 is a 6-passenger trailer designed for use with the BT-280 E-Tram personnel carrier.

  • Load capacity of 2,250 pounds
  • 6 person capacity
  • Weighs 1,000 pounds

T-941

T-942

Taylor-Dunn’s T-942 is an 8-passenger trailer designed for use with the BT-280 E-Tram personnel carrier.

  • Load capacity of 3,000 pounds
  • 8 person capacity
  • Weighs 1,000 pounds

Specifications

Vehicles Load Capacity Towing Capacity Person Capacity
SS-536
600 lbs (272 kg)
2,000 lbs (907.2 kg)
2
SS-546
600 lbs (272 kg)
2,000 lbs (907.2 kg)
2
R-380
1,150 lbs (522 kg)
5,000 lbs (2268 kg)
2
T-941
2,250 lbs (1,021 kg)
NA
6
BT-280
3,000 lbs (1,360 kg)
12,500 lbs (5,682 kg)
6
T-942
3,000 lbs (1,360 kg)
NA
8
